Christopher Baum, Hans-Georg Eckert and Wolfram Ostertag    Zander AR et al. (eds) Gene Technology,Stem Cell and Leukemia Research,Nato Asi Series H. Cell Biology, Vol 94,Springer-Verlag, Berlin Heidelberg New York London

Heinrich-Pette-Institut für Experimentelle Virologie und Immunologie an der Universität Hamburg
Martinistr.52 D-20251 Hamburg Federal Republic of Germany


Retroviral vectors designed to transduce hemopoietic stem cells have to be optimised with respect to basic requirements for gene transfer and expression. (i) The cis-regulatory elements of the genomic vector RNA interacting with retroviral proteins supplied from packaging cells must allow for optimal packaging, reverse transcription and integration into the genome of the target cell. (ii) The cis-regulatory elements of the integrated 'proviral' vector DNA interacting with the cellular transcriptional machinery must guarantee efficient and long-lasting gene expression in the target cell and its progeny. Conventional vectors rely on cis-regulatory elements of the murine type C retrovirus Moloney murine leukemia virus (MoMuL V), and its relative, Moloney murine sarcoma virus (MoMuSV) [review in Miller, 1992a]. The cis-regualtory elements incorporated into retroviral vectors generally include the U3 regions of the long terminal repeat (L TR) and leader sequences. The U3-region displays the vector's enhancer/promotor setting, greatly contributing to tissue tropism of vector mediated gene expression [review in Stocking et al., 1993]. The leader can be referred to as the complete 5' untranslated part of the vector RNA that is necessary to fulfill the retrovirallife cycle. Hence, it contains the R and U 5 region of the L TR, the primer binding site (PBS) for the tRNA-primer initiating reverse transcription and the packaging region mediating efficient pseudotyping of the vector RNA in packaging cells. State of the art MoMuLV /MoMuSV -based vectors allow for efficient and safe production of high-titre stocks in safety-modified packaging cells of fibroblast origin [review in Miller, 1992a]. This has been achieved by inclusion of an extended leader containing gag-coding sequences that were altered to eliminate residual expression of viral protein [Bender et al., 1987; Armentano et al., 1987]. However, when targeting hemopoietic cells, MoMuL V -based vectors suffer from low gene expression levels in primitive stem cells and derived myeloid lineages [review in Stocking et al., 1993; Moritz and Williams, 1994]. This can be attributed to a lack oftransactivation from lymphotropic MoMuL V -type U3 regions as well as to transcriptional inhibition mediated by a yet unidentified repressor binding at the primer binding site (PES) of the retroviralleader [Eaum et al., submitted]. The seemingly stem cell specific block involving the PES for tRNAPro ofMoMuSV/MoMuLV can be relieved by usage of a PES for tRNAGln, derived from d1587rev, a recombined virus arosen from a defective MoMuL V and an endogenous murine retrovirus [Colicelli and Goff, 1987, Grez et al., 1990]. A leader fragment containing this permissive PES and downstream located sequences extending into the packaging region of the retroviralleader has been used to generate the murine embryonic stem cell virus (MESV), the first retroviral vector cloned mediating successfull gene transfer and expression in primitive embryonic stem cells (ES) [Grez et al., 1990]. Usage of the PES from d1587rev/MESV is also associated with ability of long-term gene expression from retroviral vectors in hemopoietic cells in vivo [Hawley et al., 1992; 1993]. Hence, MESV-based vectors have been suggested to be promising candidates for use in somatic gene therapy protocols involving retroviral gene transfer to hemopoietic cells [review in Stocking et al., 1993; Moritz and Williams, 1994]. Here, we provide evidence that sequences of MoMuSV/MoMuLV located in the retroviral packaging region also contain an inhibitory element blocking retroviral gene expression in a stage and lineage-specific manner within the hemopoietic system. Again, this block can be abolished by utilization of corresponding sequences of d1587rev/MESV. Thus, leadersequences formerly believed to be solely involved in interaction with viral proteins in vector packaging might also interact with cellular proteins contributing to vector transcription. However, sequence degeneration in the packaging region might contribute to slightly suboptimal packaging of MESV -based vectors.

Methods and Results

Homolgy comparison of the leader sequences of MESV and MoMuLV.

Our MESV-based vectors contain leader sequences from d1587rev between Kpnl (bp 37 of the leader) and Pst1 (bp 574) [sequence numbering according to Colicelli and Goff, 1987]. The remaining vector backbone is derived from PCMV (PCC4 embryonal carcinoma cell passaged myeloproliferative sarcoma virus [Franz et al., 1986; Hilberg et al., 1987]). Leader sequence comparison between the MESV -based vectors and MoMuL V -based vectors reveals a number of point mutations, insertions and deletions contributing to less than 80% homology at the DNA level in the exchanged leader fragment (Fig 1 ). 5 point mutations convert the PES for tRNAPro of MoMuLV/MoMuSV to the PBS for tRNAGln of d1587rev/MESV. The PBS for tRNAPro overlaps in 17 of its 18 bp with the binding site for the yet unidentified stem-cell specific repressor also active in hemopoietic stem cells, therefore it was also referred to as repressor binding site [Kempler et al., 1993]. Downstream of the PBS follows the packaging region (). Sequences absolutely necessary for packaging are located between Msc I (bp 216) and Xma3 (bp355). Removal of that fragment is sufficient to exclude packaging of retroviral transcripts, a feature used for construction of safety-modified packaging cells like GP&env86 or GP&env AM 12 [Markowitz et al., 1988a; 1988b] .Within this fragment, a stretch of remarkably low sequence conservation (less than 50% ) is observed, named nonhomology region I [Collicelli and Goff, 1987]. Evidence obtained from analysis of oncogenic avian retroviruses suggests that a 254-bp sequence immediately downstream of the PBS, hence included in the exchanged fragment and spanning the nonhomology region I, resembles an RNA enhancer [Boerkoel and Kung, 1992]. Sequences downstream of Pstl (bp 574) are identical between MESV -based vetors and MoMuLV /MoMuSV -based vectors like LNL6 [Miller and Rosman, 1989] .Thus, MESV -based vectors contain the extended leader including 418 bp 5' gag coding region whose A UG (bp627) has been mutated to TAG to preclude translation initiation. This region is required for optimal packaging [Bender et al., 1987; Armentano et al., 1987]. We further studied the implications of the sequence degeneration in the packaging region of MESV for vector transfer and expression.

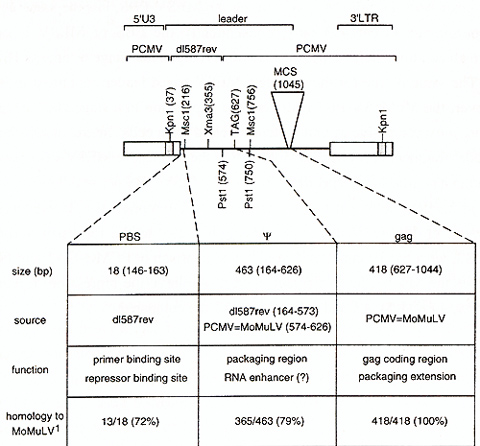

Fig.1 : Homology comparison of leader regions from MESV -based vectors and MoMuLV based vectors.
1Homology comparison according to Colicelli and Goff, 1987.

A second repressor function is located in the MoMuSV/MoMuLV-leader downstream of the primer binding site,. in contrast, the corresponding region of MESV is permissive. PCME-CAT (PCMV-LTR followed by MESV-PES and truncated at Msc1 (bp 216 of the leader), originally named PCMV(EX)/BaI587-CAT) and PCMO-CAT (PCMV-LTR followed by MoMuSV-PES and truncated at Msc1 (bp 216), originally named PCMV(EX)/Balp-CAT) have been described previously [Grez et al., 1990]. In order to elucidate the influence of the leader region located downstream of the PES for vector expression, CA T -reporter gene vectors were cloned containing the U3 region of PCMV followed by the complete leader of MESV (PCMEME-CA T) or MoMuSV /MoMuL V (PCMOMO-CA T), respectively. To seperate the influence of downstream sequences from that of the PES, CAT -vectors were cloned containing the MESV -PES followed by the complete downstream leader sequences of MoMuSV /MoMuL V (PCMEMO-CA T) and, vice versa, the PES of MoMuSV followed by downstream leader sequences ofMESV (PCMOME-CAT). This was achieved by exchanging a 560 bp Msc 1 fragment of the MESV leader with the corresponding 528 bp fragment of V -MDR (a MoMuLV/MoMuSV based vector kindly provided by A. Deisseroth, MD Anderson Cancer Center, Houston, Texas). These vectors were transfected into the pluripotent murine myeloid stem cell line FDC-Pmix 15S and granulocyte/macrophage precursor line FDC-P1, the human T -lymphoblast CCRF-CEM as well as in the murine fibroblast NIH3T3 cells as previously described [Eaum et al., 1994]. The results are shown in Fig.2. As reported elsewhere, PCME-CA T , containing the MESV -PES, has the same activity as a construct bearing the PCMV-U3 only, consequently the PES of MESV is completely permissive in all cell lines studied, irrespective of developmental stage or lineage [Eaum et al., submitted]. The same is true for the complete MESV-based leader contained in PCMEMECAT. However, the MoMuSV-PES restricts gene expression in a stage and lineage specific manner, being most repressive in multipotent myeloid stem cells. Interestingly, the fusion of the Msc l-leader fragment of MoMuSV /MoMuL V to the permissive MESV -PES restricts CAT accumulation in a similar tissue-specificity as the MoMuSV -PES per se: silencing activity can be detected in myeloid cells, but not in fibroblasts or T-lymphoblasts. However, the Msc1leader fragment of MoMuSV does not add significantly to the repressor activity of the MoMuSV -PES, what can be concluded from the comparison of PCMO-CA T and PCMOMOCAT; nor does the Msc1-leader fragment of MESV relieve the repression triggered by the MoMuSV-PES, ifPCMO-CAT and PCMOME-CAT are compared.

Fig.2 : Influence of retroviralleader on gene expression in different developmentallineages. 1CA T -activity was determined with the CAT -Elisa Kit (Boehringer Mannheim), and corrected for transfection efficiency measured by cotransfected galactosidase-activity. Values shown represent mean values of at least two independent transfections and are given as ratio to PCMECAT, whose activity was set as 1. ME, sequence derived from MESV. MO, sequence derived from MoMliSV /MoMuLV.

Influence of the MESV-leader on packaging.

Taking into consideration the relatively low degree of conservation in the leader sequences necessary for packaging of the vector's genomic RNA, the feasibility of the MESV -leader to obtain high-titre producer clones has to be investigated. We therefore established large numbers of amphotropic producer clones for MESV -based retroviral vectors via retroviral infection of amphotropic packaging cells GP&envAM12 with supernatants from ecotropic producers. The vectors transduce the dominant selectable marker human multiple drug resistance 1 (hmdrl) [review in Gottesman and Pastan, 1993]. The basic vector architecture is comparableie 5'U3-leader-hmdr1-3'LTR. In the MESV based vectors, the LTRs are of PCMV, myeloproliferative sarcoma virus (MPSV), Harvey murine sarcoma virus (HaMliSV) or spleen focus forming virus (SFFVp) origin [Baum et al., submitted]. In comparison to the MoMuL V /MoMliSV -based V -MDR 1, the MESV -based vectors consistently yield slightly lower titres or lower incidence of high-titre clones (Table I). Titres were determined by infection of ecotropic fibroblast packaging cells GP&env86 with supernatants from amphotropic producer clones and subsequent selection in the presence of 20 µg/ml colchicine and are given as mdr l-transduced units (MTU) per ml supernatant.

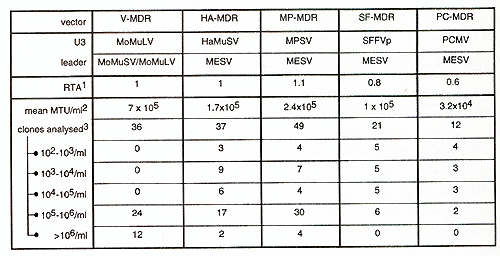

Table 1: Incidence of high-titre clones as well as mean titer is only slightly suboptimal in usage of MESV -based vectors. 1 RT A, relative transcriptional activity in comparison to MoMuL V /MoMuSV -based vectors in a fibroblast background, as determined by CAT -Elisa and Northern Blot (not shown). ²mean MTU/ml, mean titer of all clones analysed per ml supernatant. ³clones analysed, numer of clones and distribution according to titre/ml supernatant.

For PC-MDR and SF-MDR, the reduced titers can partially be explained by a weaker activity of the U3 region of PCMV or SFFVp in fibroblasts [Baum et al., submitted]. However, even MESV-vectors like MP-MDR or HA-MDR containing U3-regions with equal activity as MoMuL V in a fibroblast background showed a reduced incidence of high-titre clones in comparison to V -MDR, the vector based on the MoMuSV /MoMuL V leader. The mean titer was about five-fold reduced. Still individual clones can be selected that yield titres high enough for gene transfer into hemopoietic cells. Since the MESV -leader does not disturb gene expression in a fibroblast background (see above), transcription is most propably not the limiting event. Likewise, vector-rearrangements as a possible reason for lower titres have not been detected in the amphotropic clones by Southern blot analysis (not shown). Therefore, sequence degeneration in the packaging region of MESV might result in slightly suboptimal packaging Retroviral vectors cloned to elucidate the influence of the retroviralleader on vector expression and packaging. Since the mdr I-vectors based on the leaders of MESV or MoMuSV /MoMuL V also differ in respect to the multiple cloning site and the length of the residual env-sequences, we cloned a series of completely identical vectors differing only with respect to the retroviralleader region and enharboring the neomycin-resitance gene (neoR) as a dominant selectable marker (Fig.3). These contain either the U3-region of SFFVp (myelotropic) or the U3-region of MoMuLV (lymphotropic). The leader is either of MESV-type or of MoMuSV/MoMuLV-type. One SFFVp-driven vector contains a hybrid leader composed of the MESV -sequences including the PBS up to Mscl (bp 216) followed by the 532 bp Mscl-fragment of MoMuSV/MoMuLV identical to the assembly in PCMEMO-CAT (see above).

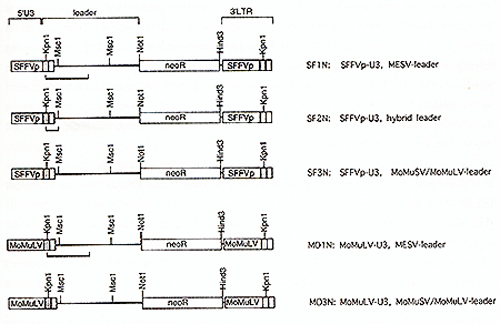

Fig.3: A series of retroviral vectors cloned to further elucidate the impact of the retroviralleader on gene transfer and expression. Brackets below vector figures indicate sequences derived from dl587rev.

Mass cultures were established in ecotropic GP&env86 packaging cells stably transfected with these proviral constructs by electroporation [Baum et al., 1994]. We are in the process of establishing amphotropic producer clones by retroviral transduction of GP&envAM12 cells with supernatants of the ecotropic producers. These will then be scored for release of functional viruses in conventional GTU-assays. Subsequently, retroviral transduction of hemopoietic cells belonging to different developmental compartments should enable us to determine the influence of the leader on retroviral gene expression in more detail.


Murine retroviruses and derived retroviral vectors have been used for a number of years to study developmental properties of hemopoietic cells. More recently, the boom in somatic gene therapy studies contributed to an enhanced demand for retroviral vectors that are both safe and highly efficient for long-term gene expression in lymphoid or myeloid cell. However, the efficiency of retroviral gene expression obtained by conventional MoMuL V -based vectors is quite low. Insufficient transactivation as well as progredient extinction of the activity of retroviral cis-regulatory elements seems to compromise their use in a variety of approaches relying on high levels and long-term maintenance of gene expression [reviews in Miller, 1992b; Stocking et al., 1993; Moritz and Williams, 1994]. Since the level as well as the duration of vector-mediated gene expression is determined by interactions of the vector's cis-elements with trans-acting proteins of the host cell, a systematic analysis of the molecular prerequisites for efficient vector function is needed. In this report, we focus on the impact of the retroviralleader on vector function. A negativeacting element triggered by the PES of MoMuL V /MoMuSV has already been reported that inhibits high levels as well as long-term maintenance of vector expression in myeloid cells [Hawley et al., 1992; 1993; Eaum et al., submitted]. A similar seemingly stem cell specific repressor function of the MoMuL V /MoMuSV PES has been noticed for murine embryonal carcinoma cells and ES cells [Weiher et al., 1987; Grez et al., 1990]. In this study, we obtained evidence hat sequences located downstream of the PES in the putative packaging region of the leader also contain cis-acting elements with inhibitory function in myeloid cells. In contrast, both the PES and the packaging region of MESV are completely permissive for U3-driven gene expression in myeloid cells. Again, similar observations have been made in ES cells, resulting in usage of a leader fragment containing both the PES and the packaging region of the endogenous retrovirus d1587rev to assemble MESV [Grez et al., 1990]. The influence of the leader could be at the level of transcription or post -transcriptionally (RNA secondary structure, RNA half life, translation). The remarkable tissue specificity of the repressory effect does not rule out one of these possibilities. Interestingly, sequences located in a 254 bp fragment of the retroviralleader located immediately downstream of the PES might be involved in a positive-feedback activation of the 5'L TR and consequent downregulation of the 3 'L TR, as was suggested from studies in avian retroviruses. The mechanism might resemble that of an RNA enhancer, in that it is dependend on the position as well as the orientation in respect to the 5'LTR [Boerkoel and Kung, 1992]. Interestingly, in the corresponding region of MESV, the greatest degree of sequence degeneration is observed (nonhomology region 1). A more precise analysis of the repressor element(s) is desirable to elucidate the nature of the repressor as well as to design optimised leaders for retroviral vectors. The latter task has to take into consideration the role of the leader region in packaging of genomic vector RNA. The sequences necessary for packaging have initially been mapped in a small fragment of the MoMuL V -leader located immediately downstream of the retroviral splice donor [Mann et al., 1983]. Hence they were excluded from gag/pol and env -expression constructs incorporated into safety-modified packaging cells [Danos and Mulligan, 1986; Markowitz et al., 1989]. Later studies emphasized the necessity of afar extended leader extending into the 5' portion of the gag-coding region to obtain high-titre packaging [Bender et al., 1987; Armentano et al., 1987]. Vectors containing these sequences to optimize packaging are addressed as gag+vectors [Bender et al., 1987] .MESV -vectors are identical to MoMuL V /MoMuSV -vectors in regard to gag+, however, both the fragment absolutely necessary for packaging and the subsequent packaging region are less than 80% conserved in comparison to MoMuLV /MoMuSV -vectors. This could account for a slightly suboptimal packaging, a possible explanation for our observations that the first generation of MESVvectors does not as routinely yield high-titre producer clones as conventional MoMuL V /MoMuSV vectors do. On the other hand, degeneration of vector-leader sequences in comparison to corresponding sequences contained in transgenes of packaging cell lines makes sense for safety reasons, because it reduces the possibility of homologous recombination necessary to create replication competent viruses out of replication-incompetent packaging cell transgenes. Therefore, dissection of the leader's cis-elements involved in packaging and transcription is an important prerequisite to develop fully permissive retroviral vectors for gene therapy applications.


This work was supported by the Deutsche Krebshilfe. The Heinrich-Pette-Institut is financially supported by Freie und Hansestadt Hamburg
and the Bundesministerium für Gesundheit.


Armentano D, Y u SF, Kantoff PW, von Ruden T, Anderson WF and Gilboa E ( 1987) Effect of internal viral sequences on the utility of retroviral vectors. J. Virol., 61: 1647-1650

Baum C, Forster P, Hegewisch- Becker S, and Harbers K ( 1994) An optimised electroporation protocol applicable to a wide range of cell lines. BioTechniques, 17: in press

Baum C, Hegewisch-Becker S, Eckert H-o, Stocking C and Ostertag W (submitted) Retroviral vectors for efficient gene expression in myeloid cells.

Bender MA, Palmer TD, Gelinas RE and Miller AD ( 1987) Evidence that the packaging signal of Moloney murine leukemia virus extends into the gag region. J. Virol. 61: 1639-1646

Boerkoel CF and Kung H-J (1992) Transcriptional interaction between retrovirallong terminal repeats (LTRs): Mechanism of 5'LTR suppression and 3'LTR promoter activation ofc myc in avian B-celllymphomas. J. Virol., 66: 4818-4823

Colicelli J and Goff SP ( 1987) Isolation of a recombinant murine leukemia virus utilizing anew primer tRNA. J. Virol., 57: 37-45

Franz T, Hilberg F, Seliger B, Stocking C and Ostertag W ( 1986) Retroviral mutants efficiently expressed in embryonal carcinoma cells. Proc. Natl. Acad. Sci. USA, 83: 3292-3296

Gottesman MM and Pastan I (1993) Biochemistry ofmultidrug resistance mediated by the multidrug transporter. Annu. Rev. Biochem., 62:385-427 Grez M, Akgün E, Hilberg F, and Ostertag W ( 1990) Embryonic stem cell virus, a recombinant murine retrovirus with expression in embryonic cells. Proc. Natl. Acad. Sci. USA, 87: 9202-9206

Hawley Ro, Fong AZC, Brns BF and Hawley TS (1992) Transplantable myeloproliferative disease in mice induced by an interleukin 6 retrovirus. J. Exp. Med., 176: 1149-1164

Hawley RG Fong AZC, Ngan BY, de Lanux VM, Clark SC and Hawley TS (1993) Progenitor cell hyperplasia with rare development of myeloid leukemia in interleukin II bone marrow chimeras J. Exp. Med., 178: 1175-1188

Hilberg F, Stocking C, Ostertag Wand Grez M ( 1987) Functional analysis of a retroviral host range mutant: altered long terminal repeat sequences allow expression in embryonal carcinoma cells. Proc. Natl. Acad. Sci. USA, 84: 5232-5236

Kempler G, Freitag B, Berwin B, Nanassy O and Barklis E (1993) Characterization of the Moloney murine leukemia virus stem cell-specific repressor binding site. Virology, 193: 690-699

Mann R, Mulligan RC and Baltimore D ( 1983) Construction of a retrovirus packaging mutant and its use to produce helper-free defective retrovirus. Cell, 33: 153-159

Markowitz D, Goff Sand Bank A ( 1988a) A safe packaging line for gene transfer: seperating viral genes on two different plasmids. J. Virol., 62: 1120-1124

Markowitz D, Goff Sand Bank A ( 1988b ) Construction and use of a safe and efficient amphotropic packaging cell line. Virology, 167: 400-406

Miller AD (1992a) Retroviral vectors. CUff. Top. Microbiol. Immunol., 158: 1-24

Miller AD (1992b) Human gene therapy comes of age. Nature (London), 357: 455-460

Miller AD and Rosman GJ ( 1989) Improved retroviral vectors for gene transfer and expression. BioTechniques, 7: 980-990

Moritz T and Williams DA (1994) Gene transfer into the hematopoietic system. CUff. Opin. Hematol., 1: 423-428

Stocking C, Grez M and Ostertag W ( 1993) Regulation of retrovirus infection and expression in embryonic and hematopoietic stem cells. in: Virus Strategies. Molecular biology and pathogenesis. pp 433-455. Doerfler Wand Böhm P (eds). VCH Verlagsgesellschaft mbH, Weinheim, Federal Republic of Germany

Weiher H, Barklis E, Ostertag W, and Jaenisch R (1987) Two distinct sequence elements mediate retroviral gene expression in embryonal carcinoma cells. J. Virol., 61: 27422746
